Measuring & testing systems

Precision from GEN3 Systems

    GEN3 Systems

    As a distributor of the British company GEN3 Systems, Stannol sells various process control systems exclusively for the German-speaking region. For these products we offer the complete after-sales service – including maintenance, calibration, repair and spare parts.

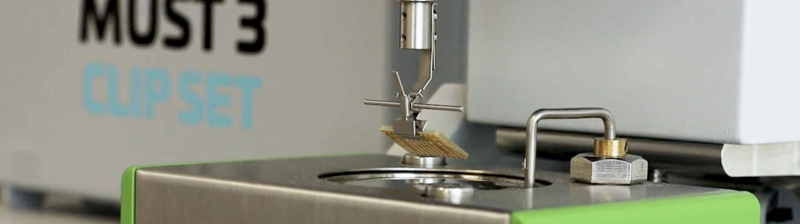

    The picture shows a Must3 test system from GEN3 Systems.

    MUST System 3

    The picture shows a Must3 test system from GEN3 Systems.

    Solderability test system (wetting balance)

    The system can be used to reliably check the solderability on electronic components, connectors, contacts, PCB surfaces and other solderable substrates. The wetting balance test is based on a force measurement using the solder bath or ball block measurement method.

    More info

    The picture shows a contaminometer from GEN3 Systems, a device for testing assemblies for conductive residues. You can see a grey, box-shaped device with a holder for printed circuit boards. The circuit boards can be lowered into the device and checked there.

    CM+ Contaminometer Series

    The picture shows a contaminometer from GEN3 Systems, a device for testing assemblies for conductive residues. You can see a grey, box-shaped device with a holder for printed circuit boards. The circuit boards can be lowered into the device and checked there.

    Testing device for assemblies for conductive residues

    The device can be used to test assemblies and printed circuit boards for ionic contamination. The high-precision measuring system is particularly suitable for checking components and printed circuit boards during and after manufacture, at incoming goods, after soldering and during final assembly.

    More info

    The picture shows the AutoSIR2+ device from GEN3 Systems, a rectangular light grey box with a display at the top right of the front.

    AutoSIR2+

    The picture shows the AutoSIR2+ device from GEN3 Systems, a rectangular light grey box with a display at the top right of the front.

    Surface Insulation Resistance Measuring Device

    The system can be used to reliably measure the surface insulation resistance (SIR) on printed circuit boards under defined climatic conditions (SIR test). The PC-based devices are capable of all common test methods.

    More info

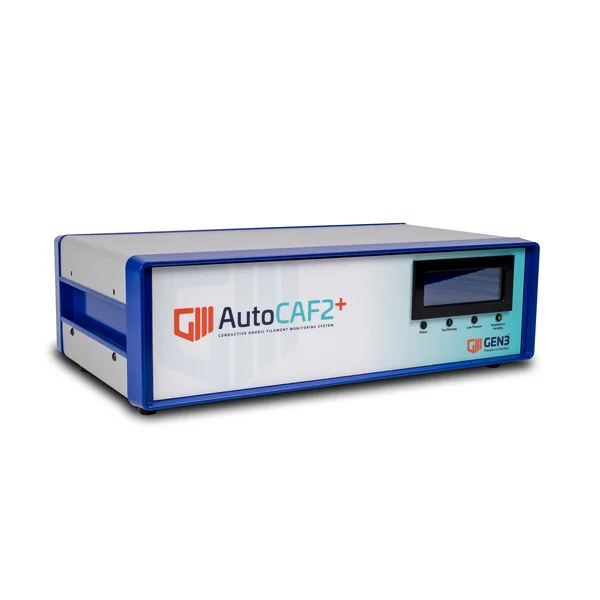

    The picture shows the AutoCAF2+ device from GEN3 Systems, a rectangular light grey box with a display at the top right of the front.

    AutoCAF2+

    The picture shows the AutoCAF2+ device from GEN3 Systems, a rectangular light grey box with a display at the top right of the front.

    Measuring device for monitoring CAF formation

    The instrument can be used to reliably test structures for the formation of conductive anodic filaments (CAF) using various voltages. Measurements up to 1,250 volts are possible.

    More info

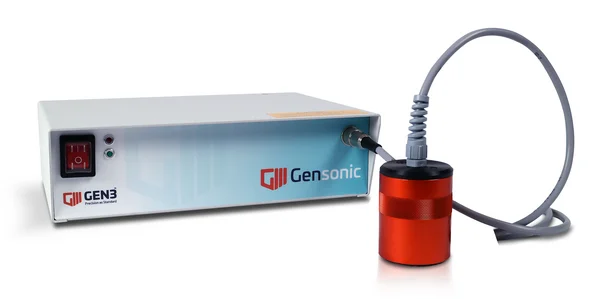

    The picture shows the Gensonic from Gen3 Systems, a light grey, rectangular device connected by cable to a red, cylindrical ultrasound device.

    Gensonic

    The picture shows the Gensonic from Gen3 Systems, a light grey, rectangular device connected by cable to a red, cylindrical ultrasound device.

    Ultrasonic stencil cleaning device

    The cleaning device can be used to gently remove solder paste, flux and adhesive residues from stencils and screens. Due to the direct action of the ultrasound, an excellent cleaning result is achieved, which is similar to that of large cleaning systems.

    More info

    [Translate to Englisch:] Auf dem Bild ist der Stannol Smart 4D Thermal-Profiler zu sehen, ein schwarzes rechteckiges Gerät mit seitlichen Anschlüssen.

    Stannol Smart 4D Thermal Profiler

    [Translate to Englisch:] Auf dem Bild ist der Stannol Smart 4D Thermal-Profiler zu sehen, ein schwarzes rechteckiges Gerät mit seitlichen Anschlüssen.

    4D temperature profile measuring device for soldering systems

    The device measures and analyses temperature curves directly on the assembly, enabling problems to be detected early and processes to be optimally adjusted. Real 4D profiling is used for this purpose.

    More Infos

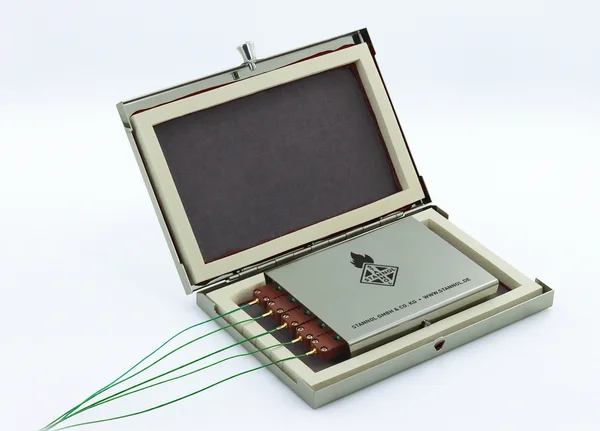

    The picture shows the Thermologger 5000 from Stannol, a temperature profile measuring device. The device is about the size of a laptop, has a metal housing and five temperature sensors on the side.

    Stannol Thermologger 5000

    The picture shows the Thermologger 5000 from Stannol, a temperature profile measuring device. The device is about the size of a laptop, has a metal housing and five temperature sensors on the side.

    Temperature profile measuring device for soldering systems

    The 5-channel temperature profile measuring device developed by Stannol offers the possibility to set up and monitor soldering processes cost-effectively and reliably. The device is ready for use in just a few steps, and both the hardware and software are intuitive to operate.

    More info

    We are happy to support you

    If you have any questions or would like an individual solution, our GEN3 Systems expert Nicolas Wiacker will be happy to support you.



    The picture shows a blond young man in a blue shirt and suit jacket. He is wearing glasses and is smiling friendly into the camera.

    Nicolas Wiacker

    Technical Sales, Measuring & Testing Systems, HumiSeal


    Mobile +49 170 658 7212



    All images on this page are sample images and may not correspond to the actual product.
