Solder Paste SP6000

Our new standard

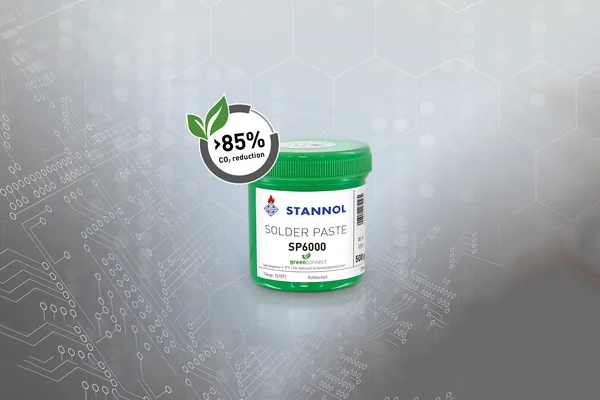

The picture shows a green tin of Stannol solder paste SP6000. It bears a white label with the Stannol logo and other product specifications. The background consists of a colour gradient of different shades of grey. Next to the can is a button with the text 85 per cent CO2 reduction.

    Solder paste SP6000 – our new standard

    We are pleased to introduce our new solder paste SP6000 which, in addition to its excellent product properties, also sets new standards in terms of  its carbon footprint. SP6000 was specially developed for use with the alloys TSC305 (Sn96.5Ag3Cu0.5) T4 and TSC105 (Sn98.5Ag1Cu0.5) T4.



    The graphic displays a circular diagram illustrating measures to achieve more than 85% CO₂ reduction. At the center is a green graphic featuring a leaf with the text “>85% CO₂ Reduction.” Surrounding the center are four icons with descriptions, explaining the key areas of reduction: Recycled Packaging: An icon of a box represents the use of recycled packaging materials. Recycled Solder: An icon of a soldering process indicates the use of recycled solder materials. Climate-Neutral Transport: An icon of a truck symbolizes climate-neutral logistics and transportation solutions. Climate-Neutral Production: A lightbulb represents climate-neutral manufacturing processes. The diagram is arranged in a circular layout, emphasizing the cyclical nature of these measures. The color scheme is predominantly green and blue, highlighting sustainability and environmental awareness.

    Sustainability meets performance

    The graphic displays a circular diagram illustrating measures to achieve more than 85% CO₂ reduction. At the center is a green graphic featuring a leaf with the text “>85% CO₂ Reduction.” Surrounding the center are four icons with descriptions, explaining the key areas of reduction: Recycled Packaging: An icon of a box represents the use of recycled packaging materials. Recycled Solder: An icon of a soldering process indicates the use of recycled solder materials. Climate-Neutral Transport: An icon of a truck symbolizes climate-neutral logistics and transportation solutions. Climate-Neutral Production: A lightbulb represents climate-neutral manufacturing processes. The diagram is arranged in a circular layout, emphasizing the cyclical nature of these measures. The color scheme is predominantly green and blue, highlighting sustainability and environmental awareness.

    When developing SP6000, we focused not only on its technical properties but also on its environmental compatibility.

    The result: An impressive reduction of  CO2 emissions by more than 85 percent compared to common solder pastes for example through the use of recycled solder, sustainable packaging materials and climate-neutral transport. With SP6000, you are not only relying on performance, but also on sustainability.




    What sustainability means to us

    Discover how we aim to promote environmentally friendly solutions in soldering technology and make a positive impact on the world and our local community.

    More about sustainability



    SP6000 – part of our greenconnect series

    Stannol offers a complete product range under the name greenconnect,
    which focuses on sustainability and fairness.

    More about our greenconnect products

    Classification

    SP6000 solder paste meets all criteria of the J-STD-005 and RoHS directives. Its wetting properties are ideally suited for lead-free PCBs and component coatings. The flux residues after the reflow process are transparent and non-corrosive.



    Dispensable version

    SP6000 is also available as a dispensable solder paste (SP6000D).

    The graphic shows a grey and white circle with two green leaves on the side. Inside the circle, the following is written in black on a white background: 85 per cent CO2 reduction.

    The advantages of SP6000 at a glance:

    The graphic shows a grey and white circle with two green leaves on the side. Inside the circle, the following is written in black on a white background: 85 per cent CO2 reduction.
    • More than 85 percent CO2 reduction compared to conventional solder pastes
    • Very well suited for low silver applications (TSC105): versatile and powerful
    • Suitable for fine pitch applications: precise and reliable
    • Very good first prints after longer printer downtime: time and resource-saving
    • Reflow process possible under air or nitrogen: flexible and adaptable
    • Very good wetting: consistent results
    • J-STD-005 compliant: classified according to well-known standard
    • RoHS-compliant: of course in accordance with applicable legal regulations

    Discover our new solder paste SP6000

    Do you have any questions about our products?

    Our application engineers will be happy to help you. Contact us, we are here for you!
    All Landline numbers are extension numbers and must be preceded by +49 2051 3120- for Germany.

    Distribution Network

    Further countries with our distributors' contacts can be found here:

    Distribution Network

    The sustainable solder paste SP6000

    The picture shows a green tin of Stannol solder paste SP6000. It bears a white label with the Stannol logo and other product specifications. The background consists of a colour gradient of different shades of grey. Next to the can is a button with the words 85 per cent CO2 reduction.

    The new standard: Stannol presents the sustainable solder paste SP6000

    To the press release

    Downloads

    TDS SP6000

     PDF (676 KB)

    Factbook SP6000

     PDF (2 MB)

    To our Stannol solder pastes
