We offer a new MUST System 3 from GEN3 for sale
As new returns - high quality with almost 30 % price advantage!
Net new price: 54,000 euros
Net sales price: 39,999 euros

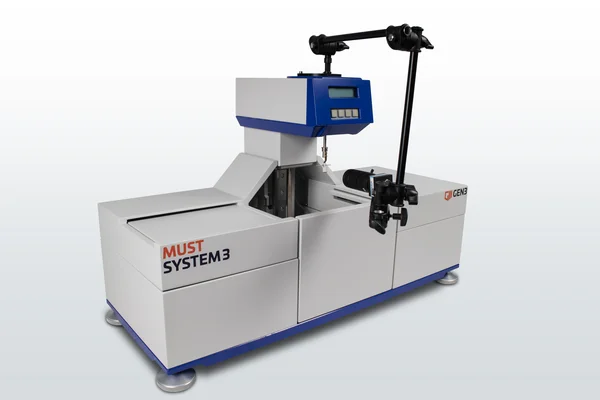

GEN3 – MUST System 3
Solderability test system for testing the solderability of components and PCBs

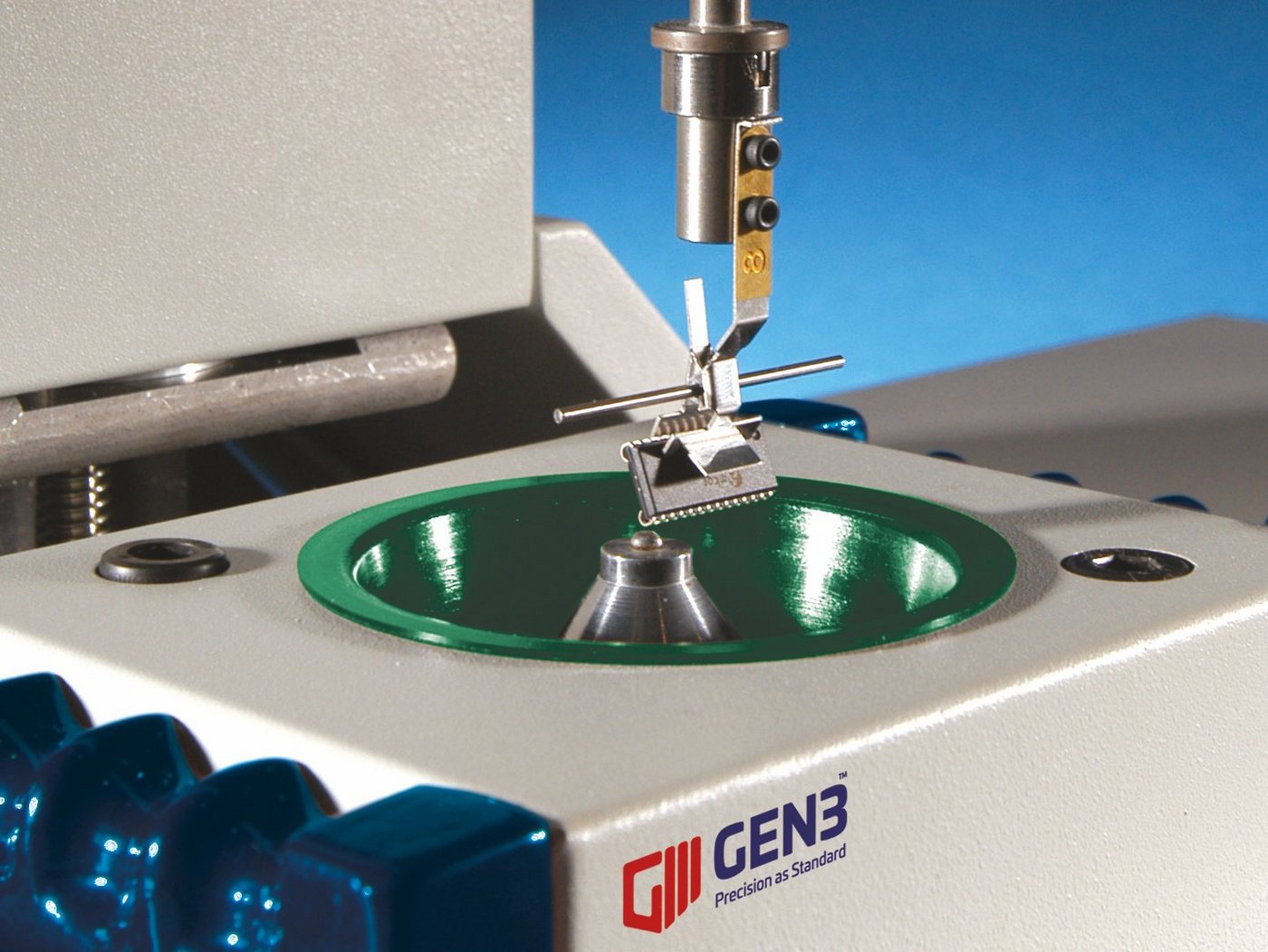

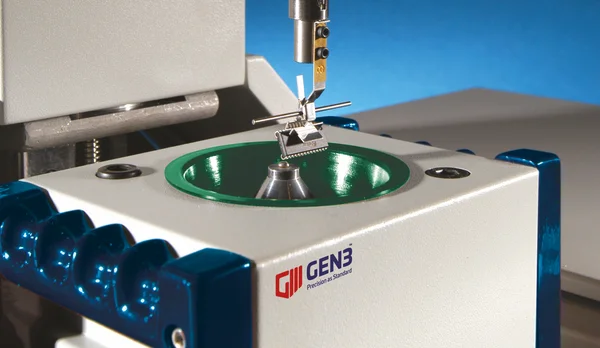

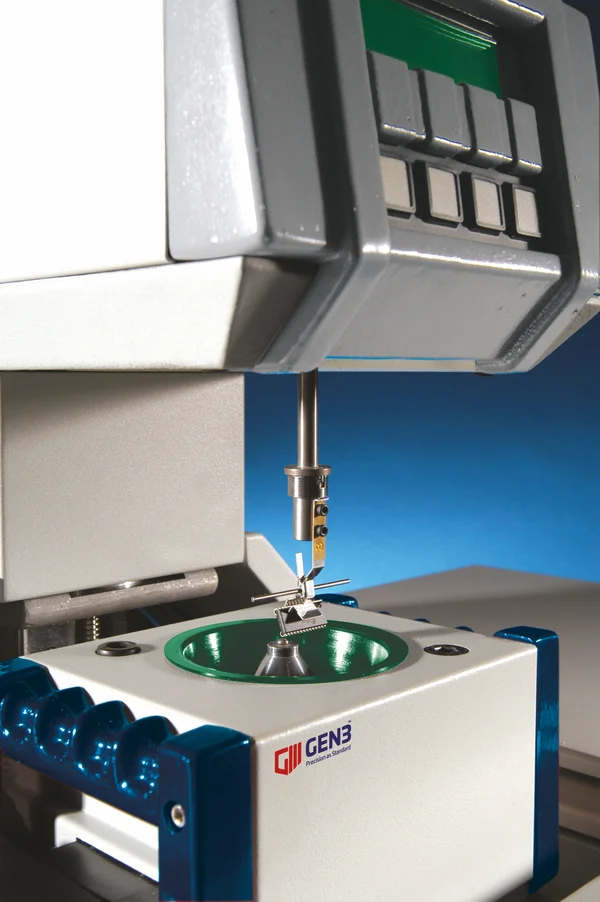

Poor solderability is one of the most common causes of defects in a soldering process. Therefore, it makes sense to check the solderability of components or PCBs in advance. With the help of the MUST System 3 wetting balance, solderability tests can be performed on almost all components and PCBs. The unique solder globule testing enables even the smallest SMT components to be tested reproducibly. The analytical measuring method provides meaningful results on the wetting behaviour, which are clearly superior to those of a simple optical test.
The advantages
- Improved product quality
- High savings possible (defect rates in soldering processes are reduced)
- easier use of milder no-clean products and more environmentally friendly soldering materials for sustainable production
Product features
- Automatic test sequence and measured value recording
- Component and test parameter management via integrated database
- Various fixtures for a wide range of components
- Solder modules for optimum test conditions
- Step repeat function for components with multiple connections
- Video option for easy setup and recording of wetting processes
Areas of application
The device offers reliable solderability tests for
- Wired components
- SMD components
- Connector pins
- Printed circuit boards
- substrates
The MUST System 3 tests according to the following standards
- IEC 60068-2-54 and 60068-2-69 (2-54)
- MIL-STD-883 PROCEDURE 2022
- IPC/EIA J-STD-003A
- IPC/EIA/JEDEC J-STD-002E
- EIA /JET-7401
More information on the MUST System 3 in use can also be found in the EPP technical article
We are happy to support you
If you have any questions or would like an individual solution, our GEN3 Systems expert Nicolas Wiacker will be happy to support you.
Nicolas Wiacker
Technical Sales, Measuring & Testing Systems, HumiSeal
Email nicolas.wiacker@stannol.de
